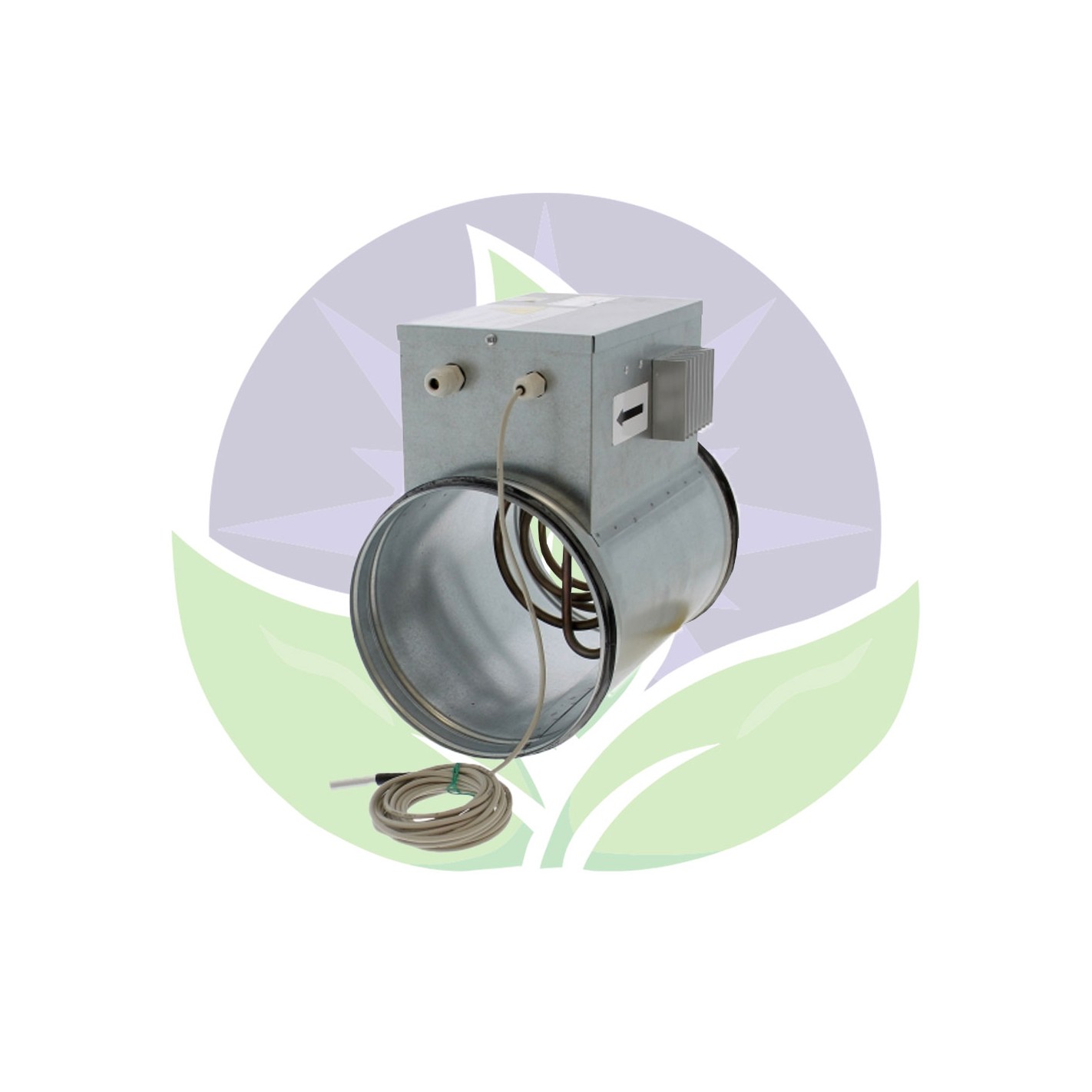

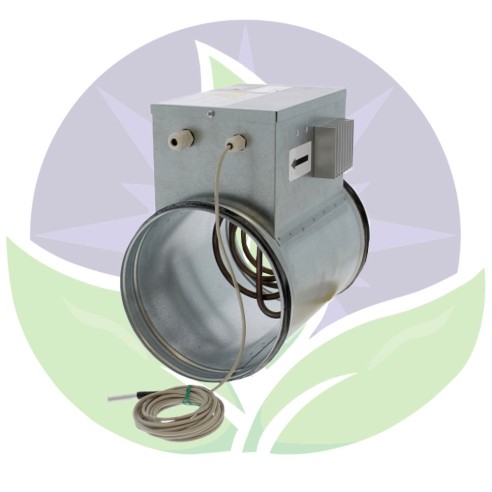

Discover the 200mm Duct Heater with integrated thermostat from VENTS. This 1200W stainless steel duct heater heats the air entering your ventilation system. Equipped with an internal sensor and a manual thermostat.
Discover the 200mm Duct Heater with integrated thermostat from VENTS. This 1200W stainless steel duct heater heats the air entering your ventilation system. Equipped with an internal sensor and a manual thermostat.
Fitted with a temperature sensor in the duct, it is encapsulated in a small aluminium tube to protect it.

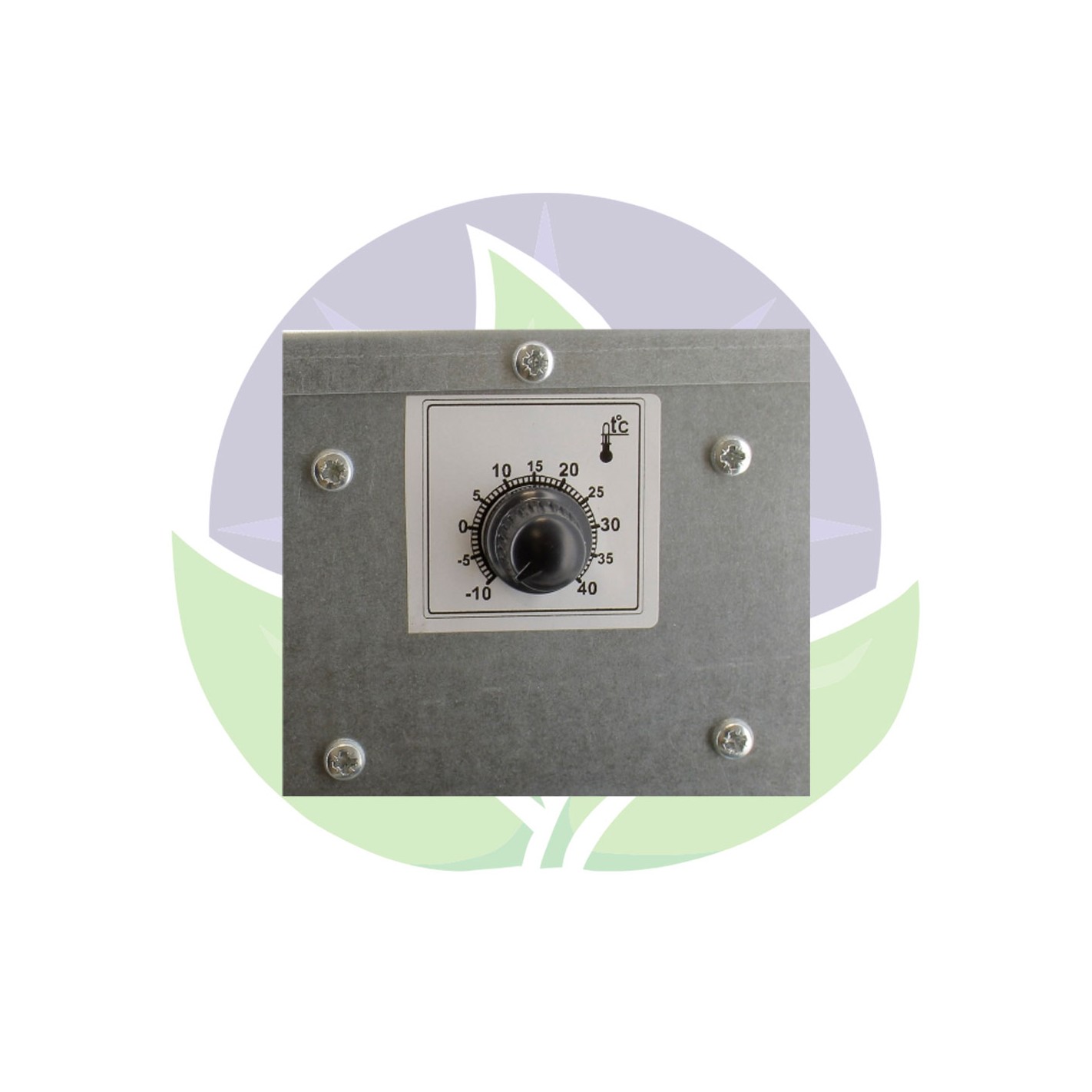

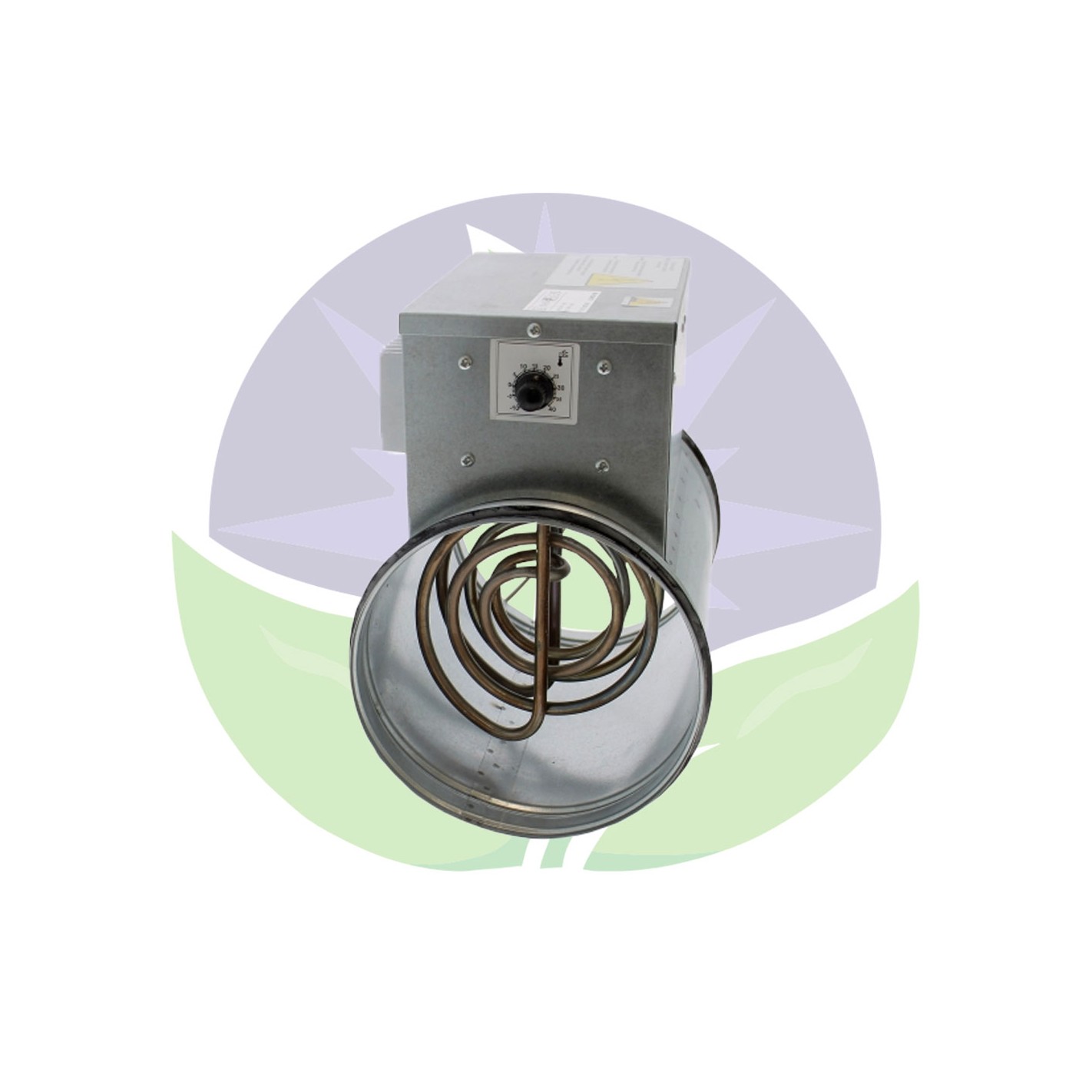

Composed of a galvanised steel frame to which the function box with its manual thermostat adjustable up to 40°C is fixed. The junction box has inlets for the connection and earthing cables. You'll also find the tubular electric heating coil inside the chassis.
The outlet connections are 200 mm in diameter and must be installed inside the air ducts. You can position it vertically or horizontally. Horizontally, the junction box should face upwards.
For safety reasons, the duct heater must be deactivated when the ventilation is OFF.
Available for 125mm - 150mm - 200mm
